Positive Displacement Rotary Gear Pump
Type CGX
Application :
Due to compact & simple design and with availability of monoblock version. This pumps are ideally suitable for OE application for
- Centralised Lubricating systems
- Oil filteration coolling & cleaning systems
- Pumping & Heating Systems
- Transtormer oil purification system use as a barrel pump.
Transfer of all viscous & semi viscous liquids like LDO,FO, LSHS Lube. oil, Mineral oil, Paint, varnish, glue, glycerin, glycol, soap solution, sugar solution, kerosane molasses etc.
Features

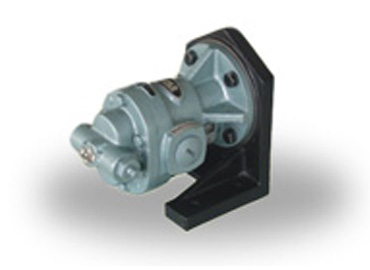

With increased efficiency enhancesd capacity range, Improved operational Reliability & relief valve function Optionally converted to foot type with the help of L Type bracket. It give choice to match the height of electric motor. The inlet outlet port orientatetion can also be changed radially. Optionally available for Hi-temp up to 250'c and for vaccum application. Optionally available with Mech. Seal.
Forward

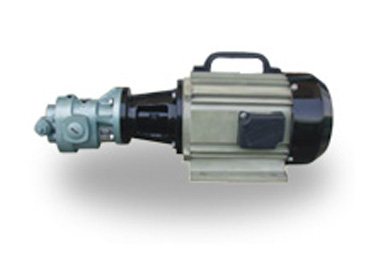

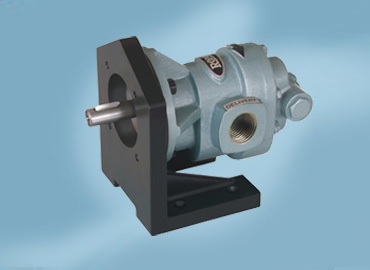

'ROPAR' Rotary Gear Pump type CGX is a self priming, Bi directional positive displacement pump with high volumetric efficiency & over all efficiency. The pumps in simple two piece CI construction with self lubricated sintered bronze bush bearing, hardened and ground shafts Gear providing maintenance free pump with long serivce life. The pump can be run in either direction with change in inlet outlet portposition. The relief valve operation can simply be reserved by changing the R,V,parts on opposite side.
Size, Capacity & Power Chart
| PUMP MODEL | INLET OUTLET SIZE | CAPACITY AT 1440 RPM | WEIGHT OF BARE SHAFT PUMP IN KG | ||
| LPM | USGPM | M3/hr | |||
| CG-025 | ¼" x ¼" | 2.5 | 0.65 | 0.15 | 1.40 |
| 5.00 | 1.30 | 0.30 | |||
| CG-050 | ½" x ½" | 10 | 2.65 | 0.60 | 2.20 |
| 15 | 4.00 | 0.90 | |||
| CG-075 | ¾" x ¾" | 20 | 5.30 | 1.20 | 4.30 |
| 25 | 6.65 | 1.50 | |||
| CG-0100 | 1" x 1 " | 35 | 9.30 | 2.10 | 5.20 |
| 50 | 16.30 | 3.00 | |||
| CG-0125 | 1¼" x 1¼" | 60 | 16.00 | 3.60 | 8.30 |
| 75 | 20.00 | 4.50 | |||
| CG-0150 | 1½" x 1½" | 100 | 26.60 | 6.00 | 9.80 |
| 125 | 33.30 | 4.50 | |||
| CG-200 | 2" x 2 " | 150 | 40.00 | 6.00 | 17.5 |
| 200 | 53.30 | 7.50 | |||
| CG-250 | 2½" x 2½" | 300 | 80.30 | 9.00 | 35.4 |
| 350 | 93.30 | 12.00 | |||
| CG-300 | 3" x 3 " | 415 | 110.00 | 18.00 | 54.0 |
| 500 | 132.50 | 21.00 | |||
Pumps & Bracket Dimension
| MODEL | A | B | E | F | G | S | T | H | H1 | H2 | H3 | L | M | N | QD | QD1 | K | PQ |
| CG-025 | 118 | 21.5 | 22 | 35 | 60 | 78 | 60 | 54 | 43 | 78 | 6 | 18 | 4 | 11 | 9.5 | 7 | 60 | 1/4"BSP |
| CG-050 | 156 | 38 | 51 | 40 | 70 | 90 | 70 | 63 | 50 | 90 | 6 | 22 | 4 | 13.5 | 12 | 8 | 70 | 1/2"BSP |
| CG-75 | 193 | 44.5 | 63.5 | 45 | 85 | 110 | 95 | 80 | 66 | 115 | 8 | 25 | 5 | 16 | 14 | 10 | 80 | 3/4"BSP |
| CG-100 | 203 | 55 | 64.5 | 50 | 93 | 120 | 110 | 90 | 73 | 128 | 8 | 27 | 5 | 19 | 17 | 10 | 90 | 1/4"BSP |
| CG-125 | 240 | 60 | 65 | 60 | 105 | 140 | 130 | 100 | 79 | 140 | 10 | 32 | 6 | 22.5 | 20 | 12 | 100 | 1"BSP |
| CG-150 | 262 | 65 | 80 | 70 | 115 | 150 | 160 | 110 | 88 | 155 | 12 | 35 | 6 | 24.5 | 22 | 12 | 108 | 2"BSP |
| CG-200 | 322 | 84 | 92 | 100 | 140 | 180 | 160 | 132 | 105 | 192 | 15 | 40 | 8 | 28 | 25 | 15 | 142 | 3"BSP |
| CG-250 | 384 | 97 | 110 | 120 | 155 | 200 | 185 | 145 | 114 | 215 | 16 | 45 | 8 | 31 | 28 | 17 | 160 | 11/4"BSP |
| CG-300 | 437 | 108 | 120 | 140 | 180 | 235 | 205 | 160 | 120 | 235 | 20 | 50 | 8 | 33 | 30 | 17 | 170 | 11/2"BSP |
MOC
| Casing & Covers | C.I. Gr. 20 , IS 210 |
| Drive Shafts | EN - 9 hardened & gr. |
| Rotary Gears | EN - 8 toughaned |
| Bush Bearings | Sintered bronze |
| Shaft Seals | Oil Seal / Mech. Seal |
| R.V. spring | AISI S.S 302 |
| R.V. ball | EN - 31 hardened gr. |
| R.V. screw & plug | Brass |
| Key for coupling | Mild steel |
