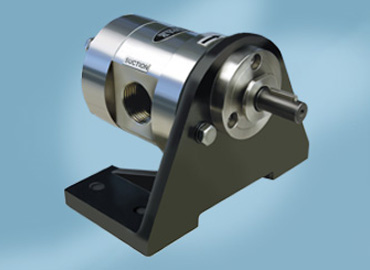

Positive Displacement Rotary Gear Pump

Type CGSS

FORWARD

'ROPAR' Rotary gear pumps type CGSS is self priming bi directional positive displacement pumps im all ss-316 constuction, case nitided shafts & gear supported on eighter side of 4, nos. teflon costed self lubricated dry bush bearings. This pumps are simple three construction, easy cleanable, the back cover can simply be removed by 4m, nos hex bolt.

Power Chart

MODEL PORT SIZE BSP CAPACITY at 1400 RPM APPROX WT.IN Kg.
M3/hr LPM US GPM
CG-025 ¼" x ¼" 1.30 5.00 0.30 1.80
2.20 8.33 0.50 2.00
CG-040 3/8" X 3/8" 4.40 16.66 1.00 3.00
CG-050 ½" X ½" 6.60 25.00 1.50 3.50
CG-075 ¾" x ¾" 8.80 33.33 2.00 4.50
CG-100 1" x 1" 13.20 50.00 3.00 5.00
CG-125 1¼" x 1¼" 26.40 100 6.00 6.00
CG-150 1½" x 1½" 33.00 125 7.50 10.500
CG-200 2" X 2" 39.60 150 9.00 20.500
52.80 200 12.00 24.00

Dimensins

SIZE A B1 C C1 D1 E E1 E2 F G H H1 H2 L1 L2 P Q PQ.B.S.P
025 128 25 17 3 11.5 8 40 120 72 54 12 63 50.5 101 94 35 3 1/4"x1/4"
040 134 25 17 3 11.5 8 50 125 75 61 14 80 66 121 98.5 35.5 4 3/8"x3/8"
050 146 25 17 3 11.5 8 50 125 77 72.5 14 80 66 121 104 42 4 1/2"x1/2"
075 169 35 25 3 14 10.5 53.5 140 82.5 72.5 17 100 83 143 123 46 5 3/4"x2/4"
100 179 35 25 3 14 10.5 53.5 140 92.5 90 17 100 83 143 128 51 51 1"x1"
125 212 38 30 3 18 12 50 110 98.5 90 21 112 91 161 146 66 6 1/4"x1/4"
150 229 38 30 3 18 12 50 132 101 103 21 112 91 161 156 73 6 1/3"x1/3"
200 259 40 30 5 24 14 75 145 107 103 25 132 107 132 174 85 8 2"x2"
200 283 40 30 5 24 14 75 160 107 103 25 132 107 187 186 97 8 2"x2"

M.O.C

01   PUMP BODY S.S.316
02   FRONT COVER S.S.316
03   BACK COVER S.S.316
04   SEAL COVER S.S.316
05   R.H. & L.H. GEAR S.S 136
06   ROTOR SHAFT S.S 136
07   STATOR SHAFT S.S 136
08   BUSH TEFLON COATED
09 BRACKET C.IGR -20IS-210
10 SEALING 'Z" PACK TEFLON
11 FASTNERS AISI-SS-316
12 PACKING TEFLON

Specialnote

All CGSS Series pumps are designed to run at 1440 RPM for liquid having low viscosity up to 500 cst. Pump size up to 1" can safely be run at 1440 RPM even at higher viscosity up to 1000 cst with addtional h.p.for size above 1" reduce the speed to 960 rpm for viscosity up to 1000 cst for higher viscosity consult the manufacturer to avoide cavitation & over loading.

Application

This CGSS series pumps are idealy suatable for handaling viscouse corrosive chemicals like mild acid, fenol etc. in chemical industies, food product like, Ghee, butter, vegetable souce, kanji, Fruit-pulp, Ice-cream, vegetable oil, these are also used in pharmaceutical industies for handling,glycerin, glycol, glucose, sugar slolution, syrup etc. This pumps also used for handaling printing ink dyes, slurry, kerosine, neptha etc.
